Hesotec Electrify eSat r20 BASE - 3.6KW - 11KW

Hesotec Electrify eSat r20 BASE - 3.6KW - 11KW

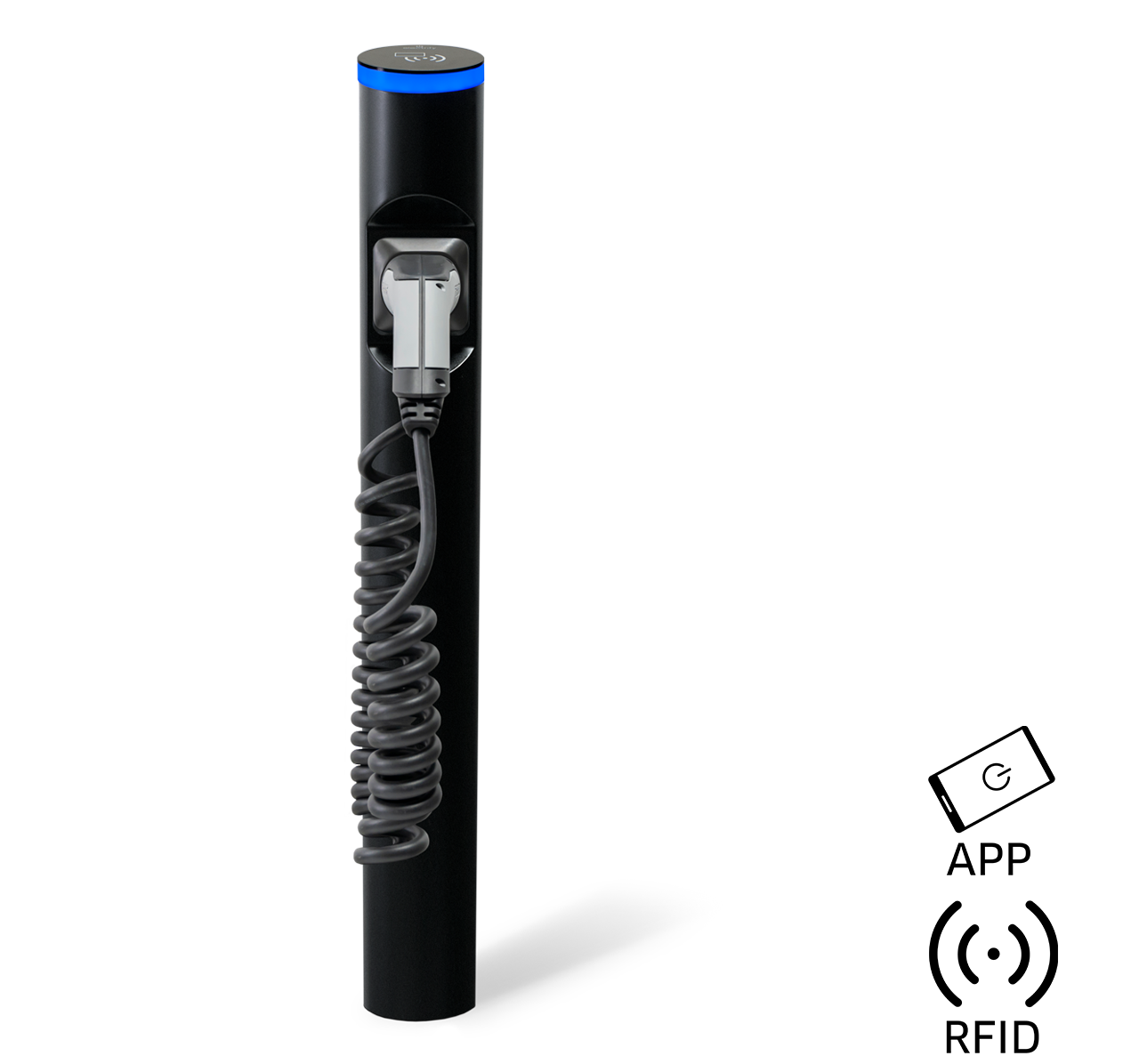

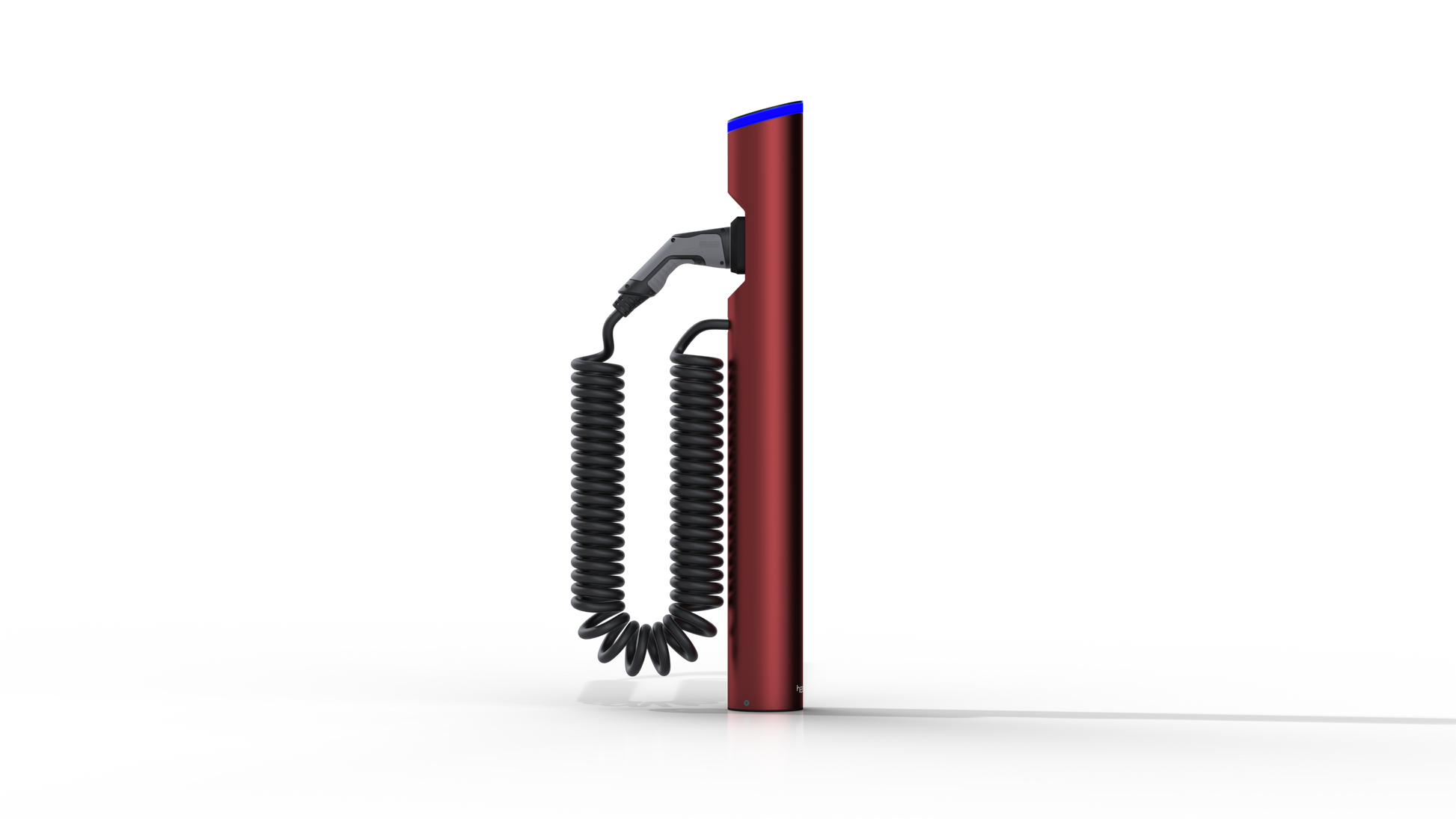

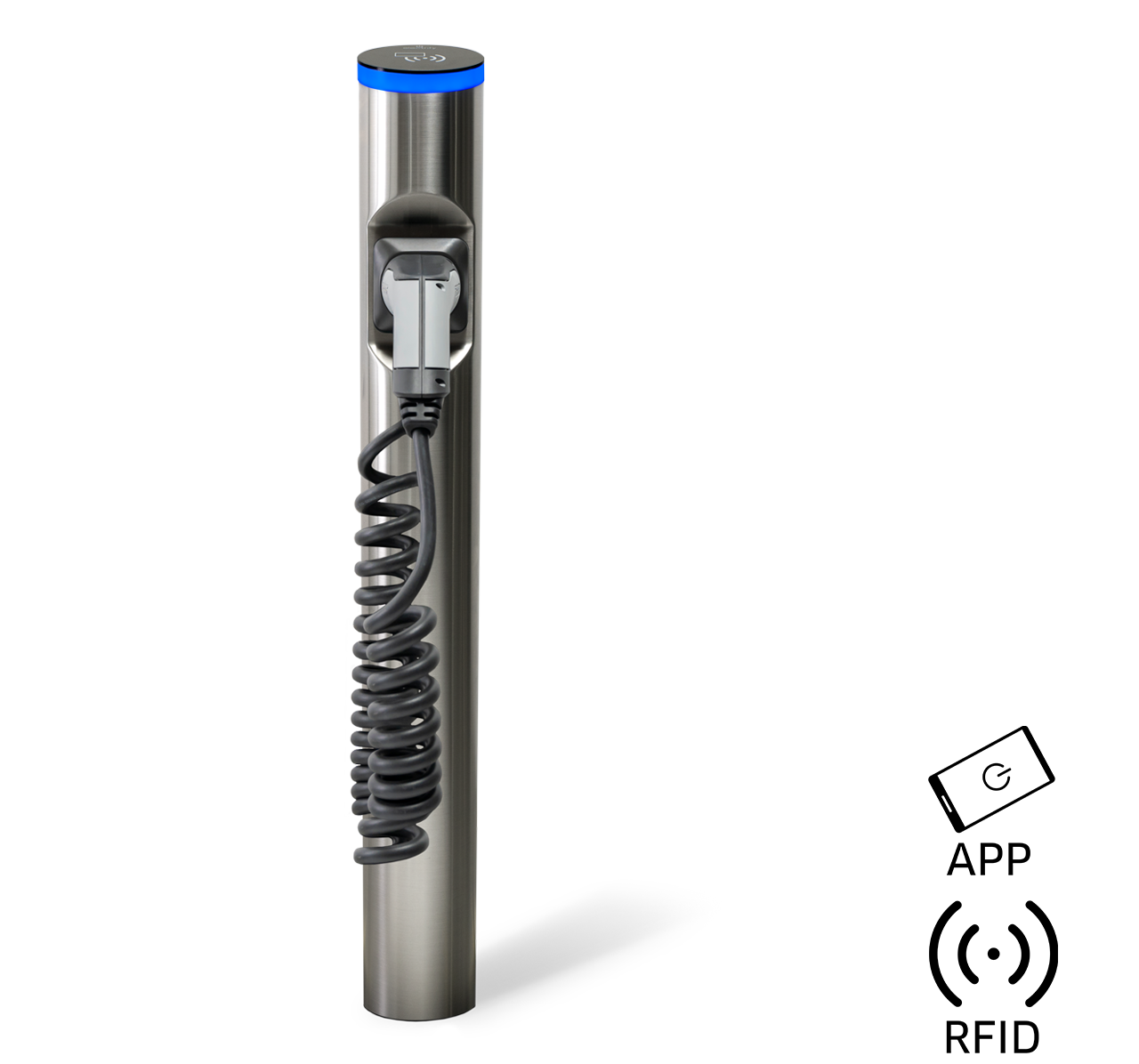

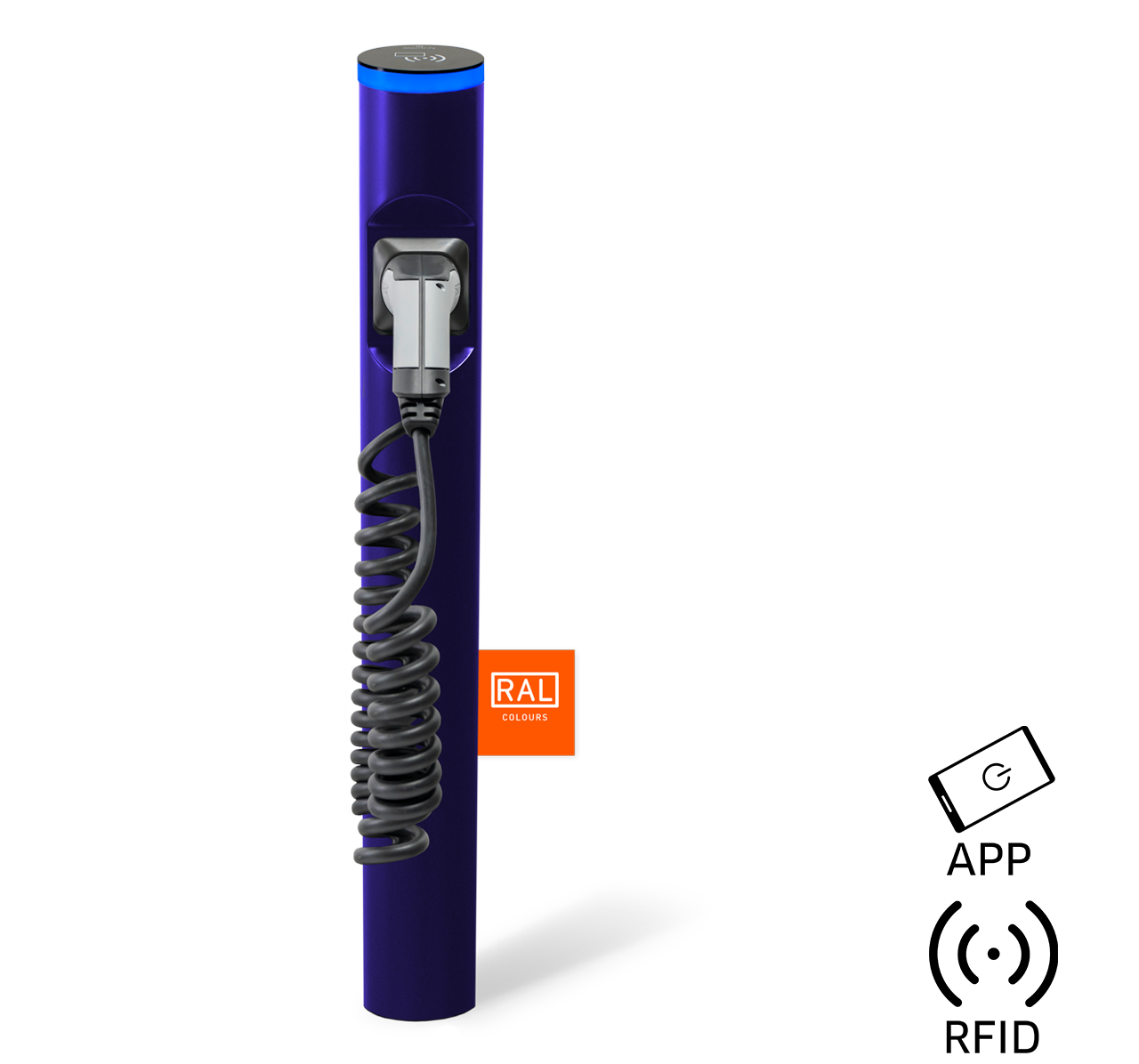

The eSat r20 Base charging station is a robust, reliable solutions for private EV charging. Built with premium materials and available in a range of finishes, they deliver both durability and style while blending seamlessly into any environment.

With charging capacities for 3.6KW to 11KW, the eSat Base ensures safe and efficient charging for your electric vehicle. You can start and stop the charging process effortlessly via RFID card or the eCC smartphone app, which also lets you manage and monitor multiple charging stations from one device. WiFi connectivity makes it easy to stay in control, whether charging at home or managing a small fleet.

The eSat r20 Base model is particularly well-suited to private households and small business fleets, offering a flexible, customisable EV charging solution designed for everyday convenience.

Specification:

• Maximum charging power: 3.6KW - 11kW
• Maximum charging current: 16 A
• DC residual current detection
• Freely positionable for indoor and outdoor use

• Authorisation via RFID or smartphone using eCC App (electrify Charge Control) or Plug & Start
• WiFi and digital inputs
• Master / Slave via electrify Mesh
• Modbus TCP compatible
•  4 m coiled cable (Type 2)
• Climate control system with axial fan and heater
• Protection class: IP54
• Easy installation

Scope of Delivery:

• eSat r20 Public
• 1x RFID card
• Ground Mounting Frame
• Mounting hardware
• Digital input adapter
• Device ID
• Quick installation guide
