Hesotec Electrify eBox sr10 SMART - 7.4KW - 22KW

Hesotec Electrify eBox sr10 SMART - 7.4KW - 22KW

The eBox sr10 Wall Box is a compact, space-saving EV charger that delivers both style and strength. Mounted vertically against your wall, it takes up minimal space while offering maximum charging convenience. Crafted from high-quality stainless steel, the sr10 is fully weatherproof, durable, and designed to perform in all conditions, a robust solution that looks as good as it works.

With charging capacities of 7.4KW - 22KW the sr10 ensures fast and efficient charging for your electric vehicle. Start charging easily via RFID card or the eCC smartphone app, then monitor and control the process directly from your phone.

The eBox sr10 Smart Wall Box is particularly suitable for implementation in commercial fleets as well as for more demanding private use.

Specification:

• Finish: Brushed stainless steel
• Max. charging power: 7.4KW - 22KW
• Max. charging current: 32 A
• MID-compliant energy meter
• DC fault current detection
• Orientation: vertical

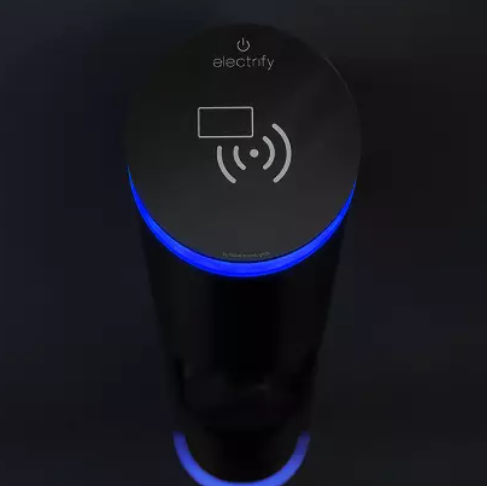

• 360° LED ambient lighting below
• Authorisation via RFID, smartphone via eCC App (electrify Charge Control) or Plug & Start
• LAN, Wi-Fi and digital inputs
• Master / Slave via electrify Mesh
• OCPP integration
• Modbus TCP
• Free backend via eLMS (electrify Load Management System): load management, evaluations and more
• Charging socket: Type 2
• Climate system with axial fan and heater
• Protection class: IP54
• Easy installation

Scope of delivery:

• eBox sr10 Smart
• 1x RFID card
• Wall mounting adapter for surface installation
• Mounting hardware
• Digital input adapter
• Device ID
• Quick installation guide
